From AMS Performance:
The Alpha Performance Porsche 991.2 Intercooler System utilizes a pair of 120mm thick high volume cores, smooth cast aluminum end tanks, and organically shaped carbon fiber ducts giving you the best cooling upgrade on the market. Each high quality Garrett core provides optimum fin density for unmatched cooling.
AMS developed the Alpha Performance Porsche 991.2 Intercooler System to provide you the best cooling upgrade for your Porsche 991.2 Carrera. In bringing these intercoolers to market our goal was to provide the ultimate system in terms of quality, simplicity, fitment, aesthetic design, and performance.

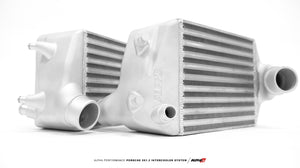

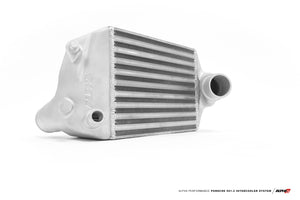

The Alpha 991.2 Intercooler System utilizes Garrett Intercooler cores that are 50% thicker than OEM! Alpha’s massive cores give you the most power producing intercooler upgrade on the market by way of significantly cooling the charged air flow. Each of the two super thick 120mm Garrett© cores provide an optimum fin density of 20 fins per inch for unmatched cooling.

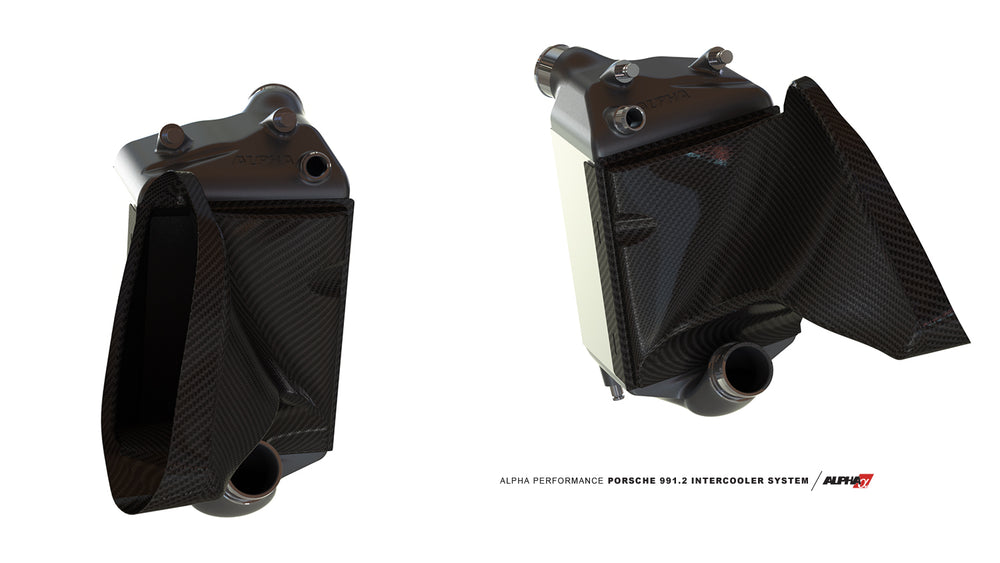

Our engineering team designed the Alpha 991.2 Intercooler end tanks with extremely smooth features and the perfect geometry for the best flow resulting in maximum horsepower. Designed using Solidworks 3D CAD software, these end tanks have improved flow over boxy sheet metal end tanks found on other intercoolers. We then took it one step further. AMS Engineers designed the organically shaped carbon fiber ducting to make use of every millimeter of available space for the ultimate power producing charge of cool air. The organic carbon fiber lower ducts allow the heat to transfer to atmosphere instead of soaking into the intercoolers.
Channeling cool air to the intercoolers is vital for optimum performance of any intercooler. Some manufacturers choose to remove the factory intercooler inlets in order to cut costs. This greatly reduces the effectiveness of ANY intercooler whether it’s larger or not. Others require that you cut up and tape the factory shrouding to the intercooler core in an attempt to seal the shroud to the intercooler core. While this is better than removing the shroud, it is still not the most effective way to boost performance. The Alpha Performance Intercooler kit requires no drilling and no cutting.
The Alpha 991.2 Intercooler System retains full use of the stock intercooler inlets forcing cool air into our larger, carbon fiber shrouds. Not only is this option more aesthetically pleasing, each rigid OEM-quality carbon fiber piece is made to seamlessly mate to the Alpha Intercoolers feeding them cooler ambient air more efficiently than the alternatives. Not to mention, eliminating the removal or destruction of your intercooler ducting. Included with the kit are velcro Alpha branded “speed straps” that hold the lower duct securely to the upper duct that will not deteriorate over time.
Maximum Airflow For Maximum Horsepower And Torque
Perhaps the best feature about this intercooler system is that it maintains cooling efficiency as more Alpha Performance power producing upgrades are developed for your Porsche 991.2. It improves the effectiveness of your other upgrades giving you maximum hp output potential.
- Highest quality intercoolers on the market
- Smooth cast end tank design reduces turbulence
- Optimum fin density of 20 fins per inch for improved cooling
- CAD design achieves perfect fitment and provides the most potential for power
- Carbon fiber intercooler shrouds and our foam tape form a tight seal to maximize cooling efficiency
- A simple installation without having to perform unsightly modifications
- High quality materials to last the lifetime of your 991.2
- Provides a factory fit & finish unmatched in the automotive aftermarket industry

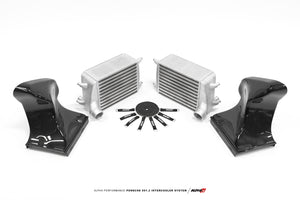

- 120mm thick Alpha Intercoolers w/ cast aluminum end tanks

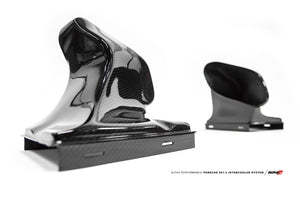

- The highest quality carbon fiber intercooler shrouds

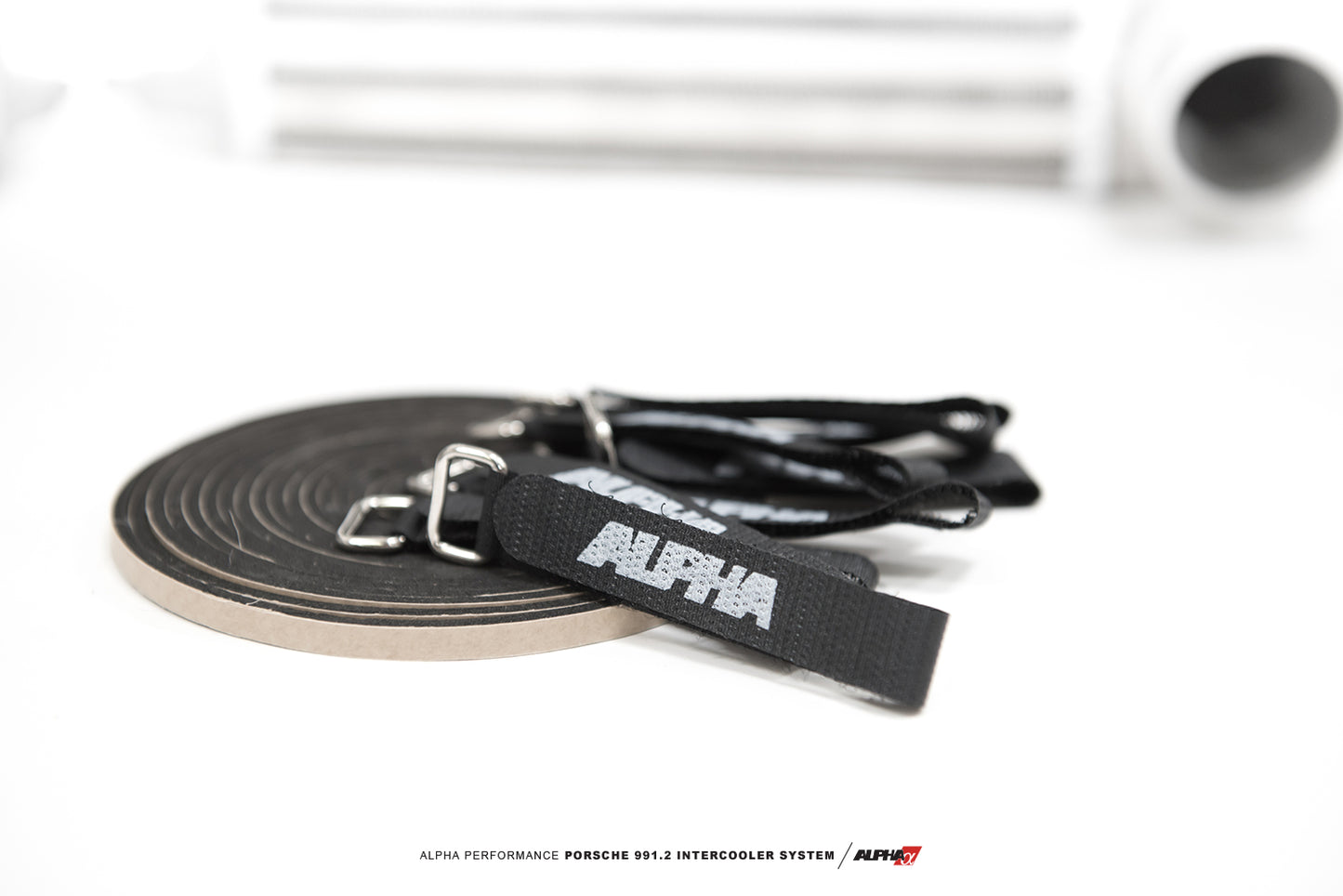

- Foam stripping
- Alpha Branded Speed Straps
- 2016-2019 Carrera
- 2016-2019 Carrera Cabriolet
- 2016-2019 Carrera S
- 2016-2019 Carrera S Cabriolet
- 2017-2019 Carrera T
- 2016-2019 Carrera 4
- 2016-2019 Carrera 4 Cabriolet
- 2016-2019 Carrera 4S
- 2016-2019 Carrera 4S Cabriolet
- 2017-2019 Carrera GTS
- 2017-2019 Carrera GTS Cabriolet
- 2017-2019 Carrera 4 GTS
- 2017-2019 Carrera 4 GTS Cabriolet
- Alpha Performance Porsche 991.2 Intercooler System Install Instructions can be downloaded here.
As these motorsports grade carbon fiber parts are hand laid, slight imperfections or weave pattern variances can be expected.
